Main Features of MEISUI Cool Gallery 2
Quality design that complements space.
They can be used also to accentuate your space. Made with clean stainless steel.
Equipped with a high-performance water purifier.
Equipped with MEISUI's unique triple filter water purifier that thoroughly removes impurities and odors. You can enjoy the taste of delicious, pure water.
Enjoy water that is always clean thanks to instant cooling.
Water is instantly cooled and sanitized by passing through the stainless steel cooling coil inside the refrigerated cooling tank.
Filling your bottle made easy with its water spout design.
Not only drinking directly but filling your water has also been made easier.
A universal design that aims for easy use.
Designed to be useful in public spaces with upper and lower faucets installed with those bound by a wheelchair as well as children in mind. (Type C, E, F, G)
*Other types are also supported. Feel free to ask us.
The top and bottom panels of the Type G model can have their glass color and finish changed according to the design of the space where it will be installed.
Different designs available to match your space

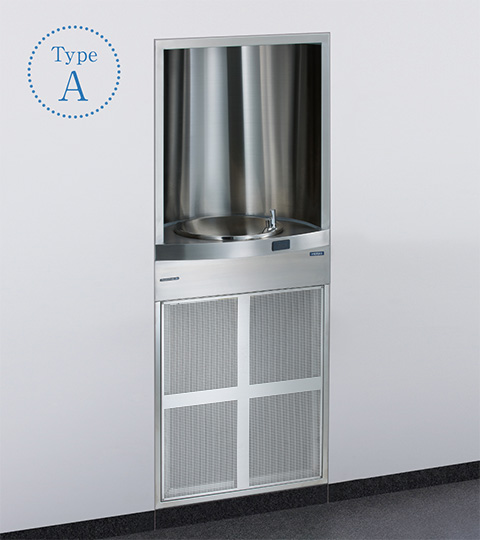

A sleek model with the drinking spout receded into the wall.

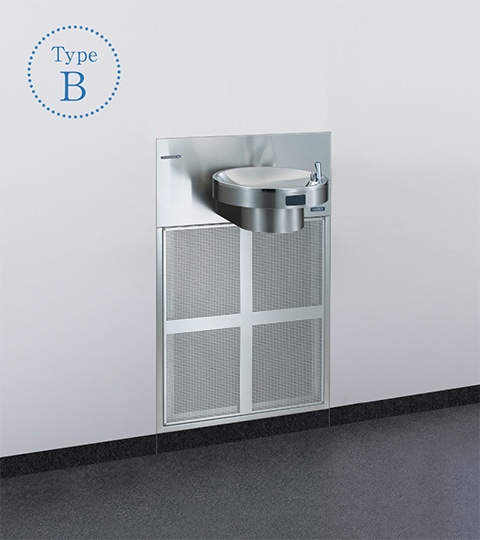

A standard model with a spout sticking out of the front, making it easy to drink.

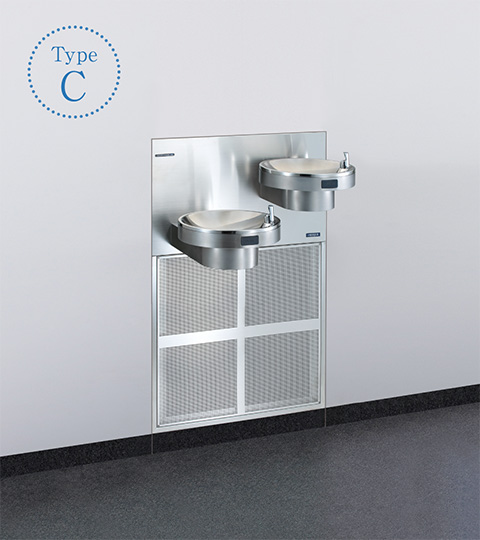

A model that is easy to use even for children or those in wheelchairs.

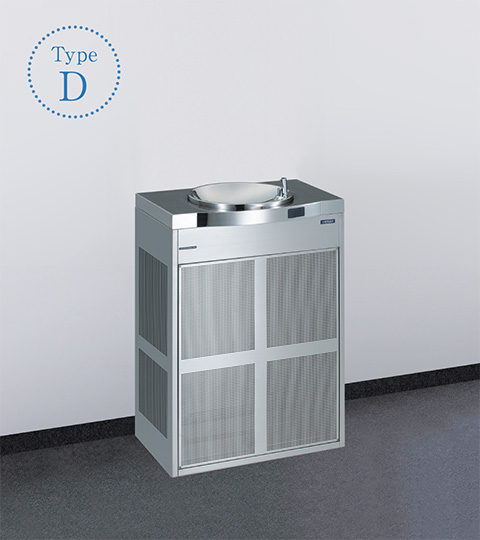

A standing model which does not need to be fit into the wall.

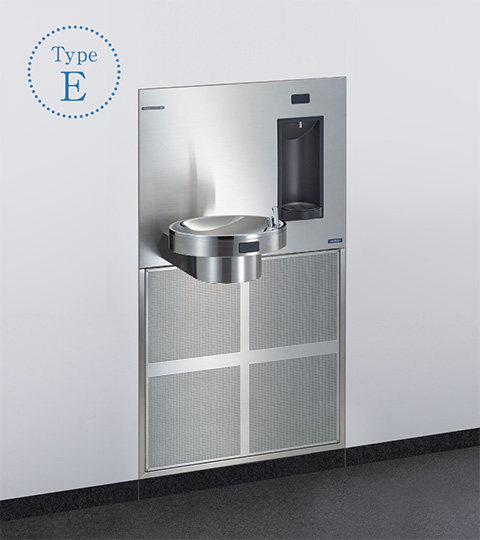

A highly convenient model that makes refilling bottles easy and is easy to use for children and those in wheelchairs.

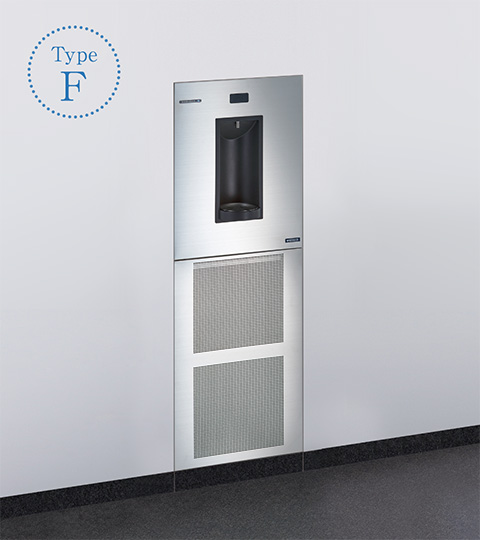

A slim, easy access model especially made to refill bottles easily with one hand.

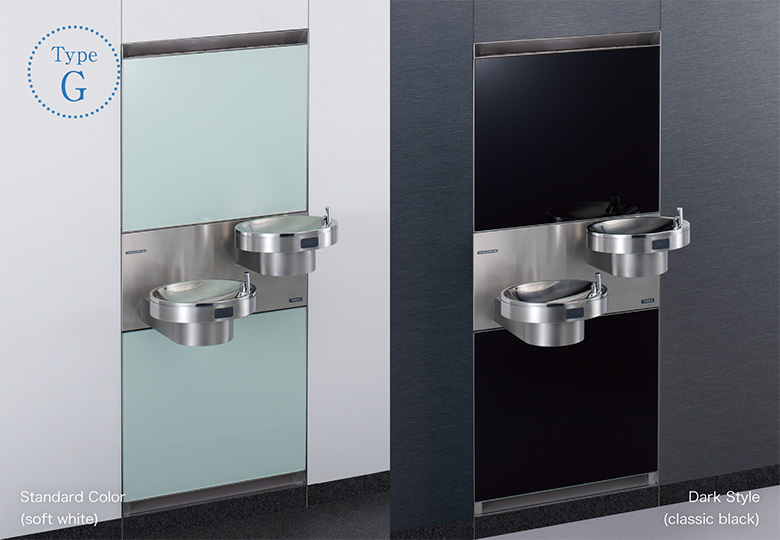

An easy access model that allows you to change its glass panels to match the interior design.
The dark style is an example of a model that you can change the glass panels to give it a chic look.
(*Other colors are also available. Additionally, you can switch the glass panel for an interior finish. Feel free to ask us.)
MEISUI Cool 2 Water Coolers
The MEISUI Cool 2 has a freezing device that runs automatically to give you a fixed supply of ice inside the cooling tank.
The MEISUI Cool 2 can be also used as a standalone water cooler.
Heat gets released as the cooler runs so please be careful of where it is installed and the air intake and exhaust so that the cooler does not overheat.
Specifications
Specifications
| MEISUI Cool Gallery Built-in Types (A・B・C・E・F・G) / Standing Type (D) | |
|---|---|
| Cooling Method | Tap Water Direct Instant Cooling System (a stainless cooling coil pipe inside the cooling tank) |
| Materials | [Type A, B, C] Top/Panel/Frame/Sink: Stainless steel sheet metal (hairline) Sink basin: Stainless steel (mirror surface) [Type D] Panel/Frame: Stainless steel sheet metal (hairline) Top/Sink basin: Stainless steel (mirror surface) [Type E] Top/Panel/Frame/Sink: Stainless steel sheet metal (hairline) Cup holder: ABS Sink basin: Stainless steel (mirror surface) [Type F] Top/Panel/Frame: Stainless steel sheet metal (hairline) Cup holder: ABS [Type G] Bowl panel/Frame/Sink: Stainless steel sheet metal (hairline) Sink basin: Stainless steel (mirror surface) Top and bottom panels: Stainless steel frame, colored glass (standard color: white) |
| Release Method | Push button (comes with auto-shut off function, auto-flushing function) |
| Release Time | Water automatically stops in 8 seconds (can be configured to be between 5 and 30 seconds) |
| Auto-flush (cleaning) Feature | Automatically flushes for 4 seconds every 3 hours (can be changed to 2 hours) |
| Operating Water Pressure | 0.1 to 0.35 MPa (1.0 to 3.6 kgf/cm2) |
| Auto-flush (cleaning) Capacity | Approximately 1 L/day (Type A, B, D, F), Approximately 2 L/day (Type C, E, G) |
| Discharge Amount (under proper water pressure) | 2 L/minute |
| Drainage connector | 32 mm S trap |
| Power | AC 100 V 50/60 Hz |
| Electrical cord | Grounded plug: 3 prongs, 1.8m 1 opening (Type A, B, D, F) / 2 opening (Type C, E, G) |
| MEISUI Cool 2 Water Coolers | |
|---|---|
| Cooling Method | (Water cooler unit) Drinking water is cooled by being run through the stainless steel cooling coil pipe installed in the cooling tank. |
| Power | AC 100 V 50/60 Hz Capacity: 15 A |
| Electrical cord | Plug with circuit breaker: 2 prongs, 2.6 m, 1 opening (separate 3 meter grounded wire included) |
| Rated Electrical Current | 2.1/2.1 A |
| Rated Electrical Consumption | 170/180 W |
| Compressor | Hermetic 50 W |
| Condenser | Mechanical-draft cooling |
| Cold Water Intake Power | 30 L/3 hours Room temperature: 18.5±1℃, Water supply temperature: 25±1℃;, Flow amount: 2 L/minute, Frequency: 60 Hz, Intake interval: If 4 times/minute, it can fill 200 cups (150 cc) of water that is below 15℃;. |
| Cold Water Temperature | Below 15℃ (when water supply temperature is 25℃) |
| Coolant | R134a 105 g |
| Cooling Component Materials | Stainless steel (cooling coil pipe & cooling tank) |
| Piping Connector Size | G1/2 for both opening and exit (male screw) |
| Drain | Rubber stopper |
| Weight (Water cooler unit) | 20 kg (approx. 27 kg when operating) |
| Dimensions (Water cooler unit) (mm) | 429 width × 271 depth × 401 height |
- * Please contact us when below 10℃
| NFX-LZ Water Purifier | ||
|---|---|---|
| Filter Materials | Non-woven fabric, granular coconut shell activated carbon, special fibrous activated carbon (ion exchange fiber compound), hollow fiber membrane | |
| Filtration Power | Free Residual Chlorine (when 2.0 mg/L) |
100,000 L |
| Turbidity (when turbidity is 2 degrees) |
20,000 L | |
| Trihalomethane (when 0.100 mg/L) |
25,000 L | |
| CAT (Simazine) (when 0.0030 mg/L) |
100,000 L | |
| Soluble lead (when 0.050 mg/L) |
20,000 L | |
| 2-MIB (mold smell) (when 0.00005 mg/L) |
30,000 L | |
| Tetrachloroethylene (when 0.010 mg/L) |
100,000 L | |
| Trichloroethylene (when 0.030 mg/L) |
100,000 L | |
| 1,1,1-Trichloroethylene (when 0.300 mg/L) |
20,000 L | |
| Filter Material Usable Life | Within 12 months | |
- * Filtration power is a test result calculated using JIS S 3201 -household water purifier testing methods.
- * Please use only for tap water which contains 0.1 mg/L or more of free residual chlorine.
- * Actual colors may vary compared to the colors shown in the images.
- * Product design and specifications are subject to change due to improvements or other reason without prior notice.
Installation Manual and Installation Procedure
You can view the installation manual and installation procedure for the MEISUI Cool Gallery 2.
BusinessesMEISUI Cool Gallery 2 Type G Installation Instructional Videos
Japanese only
Download Catalog
Filtered Water Coolers & Gallery Series
MEISUI Cool Gallery 2 Product Catalog
6 pages | 1.7 MB (PDF) Japanese only
Download PDFWhat MEISUI Cares About
They remove impurities and odors found in the water and leave in the minerals that makes water delicious, providing you with safe and great tasting water. When it comes to built-in water purifiers, you can see what MEISUI cares about when you take a look at their ease of use for work recognized by even professionals and their filtration power.
